Produtos / Bornes / Bornes METALTEX / Conector de Passagem Mola / Conector de Passagem Mola BM2-F3

Ref.: BM2-F3

Código JBV: 12417

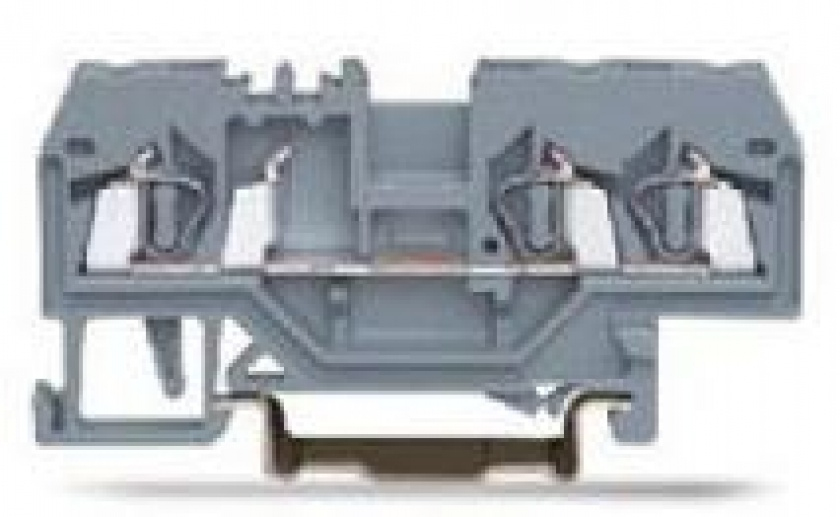

Conector de Passagem Mola BM2-F3, Conexão frontal
Modelo cinza
Abertura do borne para inserção ou remoção do fio é feita com chave de fenda
Dimensões(mm) 5x64x28
Corrente nominal 24A
Cabo aplicável 0,2 a 2,5mm² ; 24 a 14 AWG
Decapagem 8-9mm
Trilho Din para fixação TS35
Conexão 1____3_4

Fabricante

METALTEX
